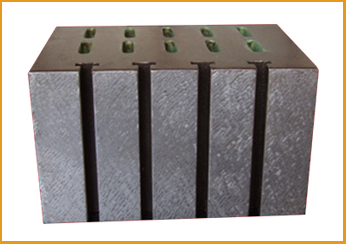

Box Angle Plates

We are doing reconditioning of Box Angle Plate to Grade 1and Grade 2 accuracy as per IS:2632.We specialize in offering qualitative box angle plates. These are basically used for clamping work for tooling, shaping and milling, wherein, job can be fixed on one of its faces and are rotated in 5 positions without the need of repositioning or disturbing accuracy. Our range of box angle plates is used in diverse engineering industries where all the parameters such as squareness, flatness and parallelism are required in a single instrument. These parameters are true to each other for effective functioning of the plates.

Sizes in mm	Grade of accuracy	Flatness of working face Microns	Squareness of working faces over dim. 'H' Microns	Parallelism of opposite faces Microns
L X B X H
250 X 150 X 175	1	8	15	18
	2	38	75	88
350 X 200 X 250	1	8	18	20
	2	38	75	88
450 X 300 X 350	1	10	18	20
	2	50	100	113
